30w Walk Through Metal Detector Door Frame Body Detect Multi Angle Infrared
Features
- Simple and elegant front panel design , the leading international one key management technology , marked in English , easy to operate
- Multi-probe , multi-zone, multi- launch and reception , interactive detection technology
- The super brightness SMD double district alarm indicators , multi angle display the hiding place of prohibited items
- High decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
- It can link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
- The 3D multi angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
- Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has gone beyond the traditional design
- The warning lights conversion of each zones are managed separately .
Specifications
| Name | 2015 |
| Model | ARSENAL-1024 |
| Vertical dimension | 2200x620x850mm |
| Vertical channel size | 2000x700mm |

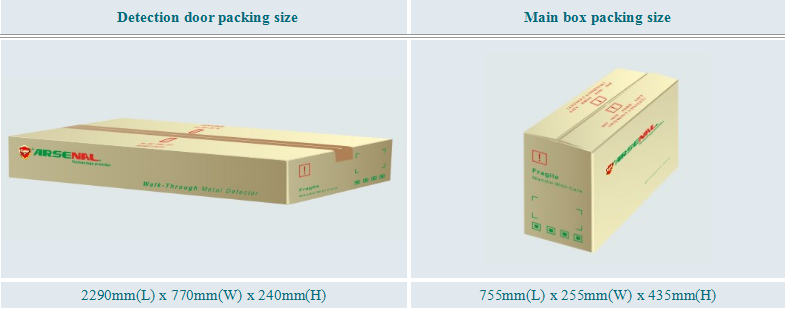

| Main box packing size | 755x435x255mm |
| Detection door packing size | 2290x770x240mm |
| Net weight of main box/detection door | 72kg |
| Gross weight of main box/detection door | 81kg |
| Working voltage | AC90V~250V 50/60Hz |
| Power consumption | 30W |
| Working frequency range | 1-100 bands |
| Working environment temperature | -20℃ ~ 65℃ |
| Installation environment | (W) 100cm* (L) 200cm
(minimum range without metal) |
Our Service
1. All products purchased in our company are guaranteed to keep in good repair for two year.
2. If quality problems happen in guarantee period, our company will maintain for free.
3. Additionally, our company provides technical support and fittings for life.
4. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
Applications
Airports,Factory,Police,Army,Banks,Embassies,Government buildings,Military installations
Prisons,Security checkpoints,Post office,Venue
Packing detail
